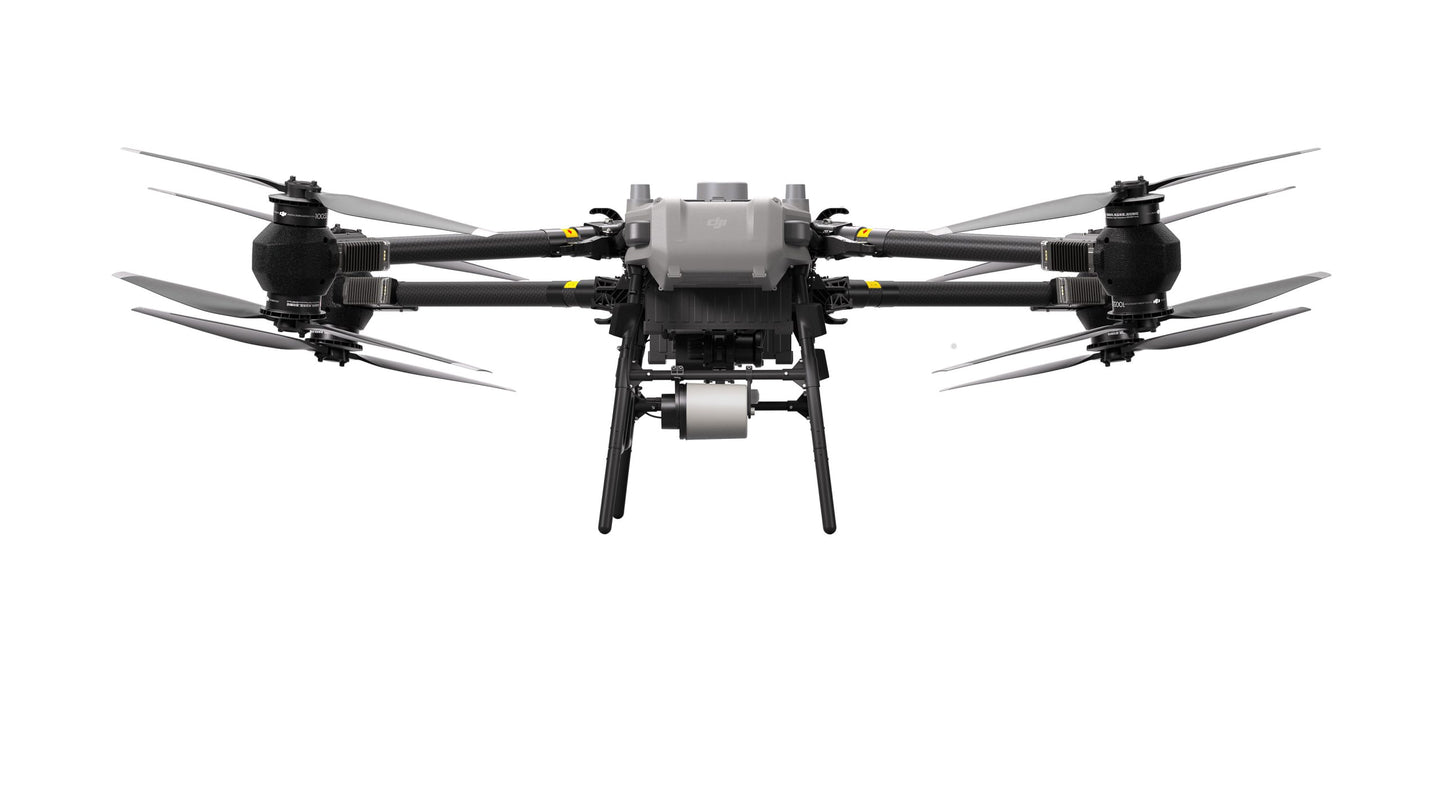

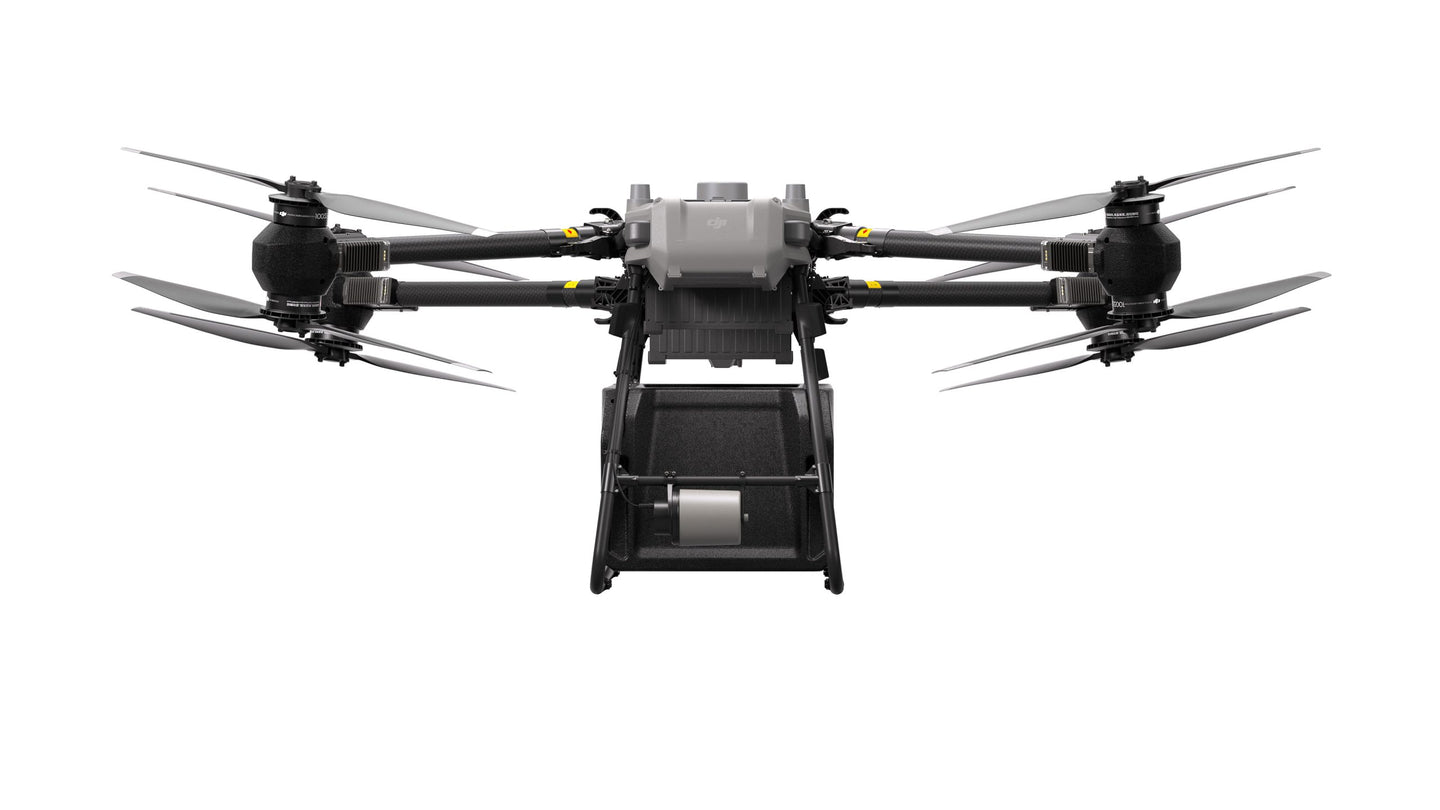

The DJI FlyCart 30 is a groundbreaking logistics drone designed for industrial-grade performance, delivering unmatched power, endurance, and versatility. Engineered to revolutionize aerial transportation, the FlyCart 30 offers precision hovering, impressive payload capacities, and robust environmental resistance. Whether it’s delivering cargo, conducting inspections, or surveying operations, this heavy-duty drone ensures exceptional efficiency and reliability. Built with cutting-edge technology, including RTK positioning, O3 transmission, and a host of optional features like winch systems and parachutes, the FlyCart 30 sets the standard for professional drones.

Key Features

Powerful and Versatile Design

• Payload Capacity: Supports up to 40kg with single battery mode and 30kg in dual battery mode, ideal for heavy-duty operations.
• Multiple Configurations: Includes optional winch systems, parachutes, and cargo cases for customized functionality.
• IP55 Protection: Dust and water-resistant design for reliable use in diverse environments.

Outstanding Flight Performance

• Max Flight Time:
  • 29 minutes (empty weight, dual battery mode)
  • 18 minutes (max payload, dual battery mode)
• Max Flight Distance:
  • 28km (empty weight, dual battery mode)
  • 16km (max payload, dual battery mode)
• Max Speed: Up to 20m/s, enabling quick and efficient deliveries.
• Hovering Accuracy:
  • RTK enabled: ±10cm (horizontal/vertical).
  • GNSS only: ±60cm horizontal, ±30cm vertical.

High-End Propulsion System

• Carbon Fiber Composite Propellers: Foldable 54-inch blades for durability and efficiency.
• Max Motor Power: 4000W per rotor with 8 rotors for superior lift capacity.
• Wind Resistance: Handles winds up to 12m/s with stability.

Intelligent Navigation & Transmission

• RTK/GNSS Navigation: Ensures pinpoint accuracy with GPS, Galileo, BeiDou, and QZSS support.
• DJI O3 Transmission:
  • Max range: 20km (FCC), 8km (CE).
  • Live HD video with AES-256 encryption for secure data transmission.

Optional Features for Customization

• Winch System: Payload support up to 40kg with 20m cable length and advanced swing control.
• Parachute System: Automatic and manual deployment, reducing risks during emergencies.

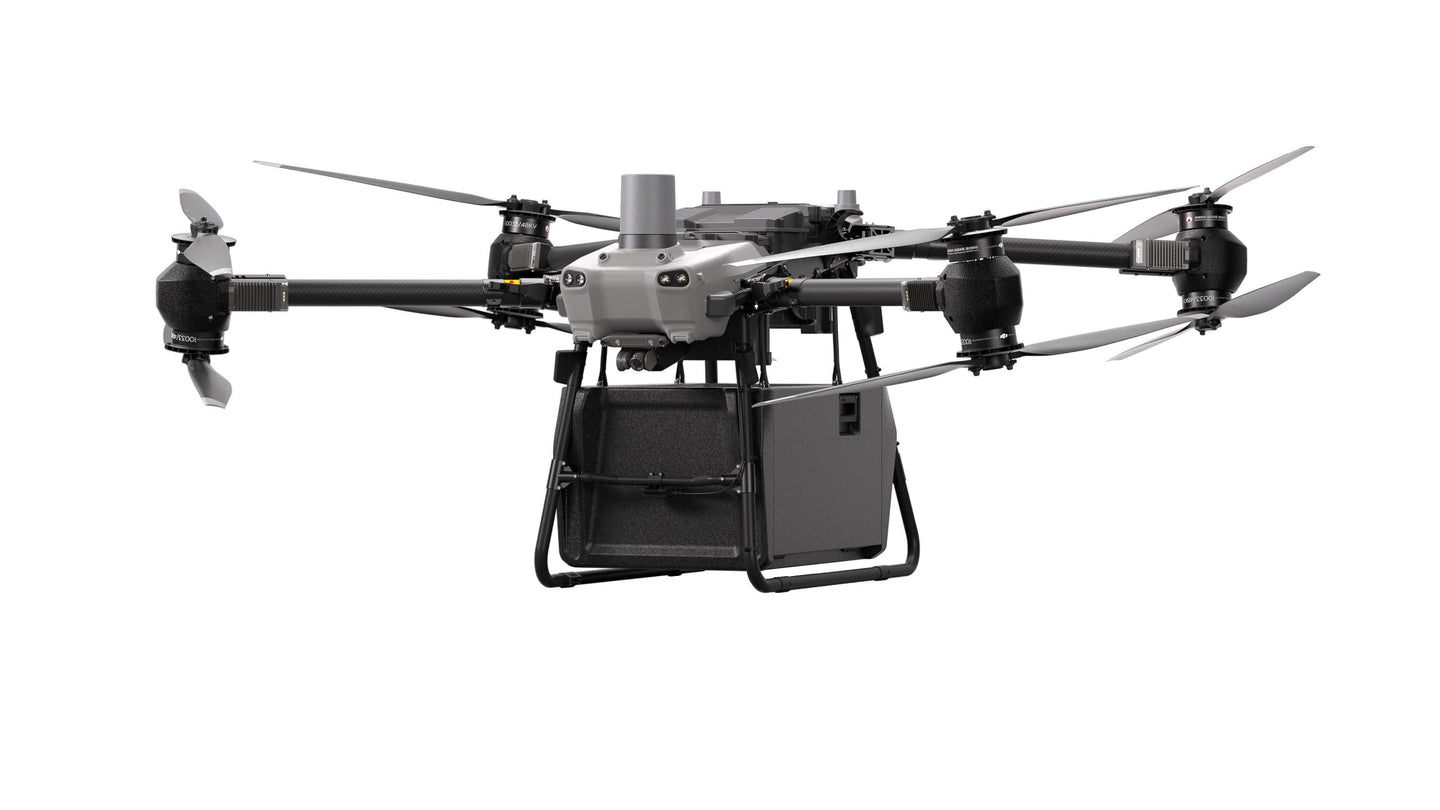

• Cargo Case: Spacious design for 40kg loads with an EPP-aluminum alloy frame for durability.

Environmentally Robust

• Operating Temperature: -20°C to 45°C, ensuring performance in extreme conditions.
• Ingress Protection Rating: IP55 for dust and water resistance, ensuring reliability in harsh environments.

Integrated LED and Safety Features

• LED Lighting: Effective illumination up to 10m with automatic ambient light adjustments.
• Safety Systems: Active phased array radar, ADS-B support, and robust obstacle detection with a 360° field of view.

Specifications

Aircraft

• Weight:
  • Without battery: 42.5kg
  • With two DB2000 batteries: 65kg
• Max Takeoff Weight: 95kg
• Dimensions (Unfolded): 2800x3085x947 mm
• Max Speed: 20 m/s
• Max Flight Altitude: 6000m
• Folding Method: Towards the body
• Hovering Endurance:
  • 29 minutes (empty, dual battery)
  • 18 minutes (max payload, dual battery)

Propulsion System

• Propellers: Foldable 54-inch blades, carbon fiber composite.
• Motor KV Value: 48 rpm/V
• Max Motor Power: 4000W per rotor

Advanced Sensing

• Forward/Backward Active Radar:
  • Altitude Detection: 1.5–200m
  • Obstacle Avoidance: 1.5–50m
• Binocular Vision:
  • Horizontal FOV: 90°
  • Vertical FOV: 106°

Battery

• Model: DJI DB2000 Intelligent Battery
• Capacity: 38000mAh (1984.4Wh)
• Weight: Approx. 11.3kg
• Max Charging Power: 5700W
• Operating Temperature: -20°C to 45°C

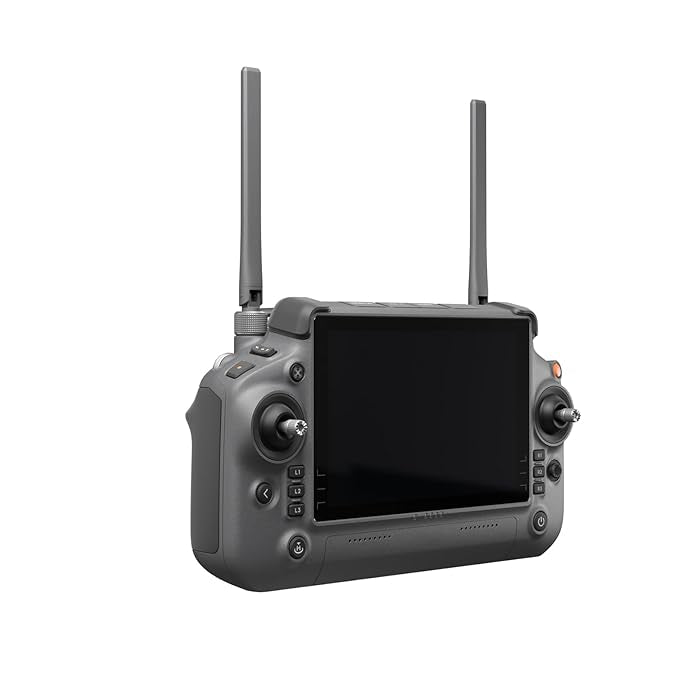

Controller

• Model: DJI RC Plus
• Screen: 7.02-inch LCD, 1200 nits brightness
• Operating Time: 6 hours (with built-in and external battery)
• Ingress Protection: IP54

What’s in the Box

• DJI FlyCart 30 Drone × 1
• DJI RC Plus Remote Controller × 1
• 54-Inch Propellers (Pair) × 4
• Cargo Case × 1
